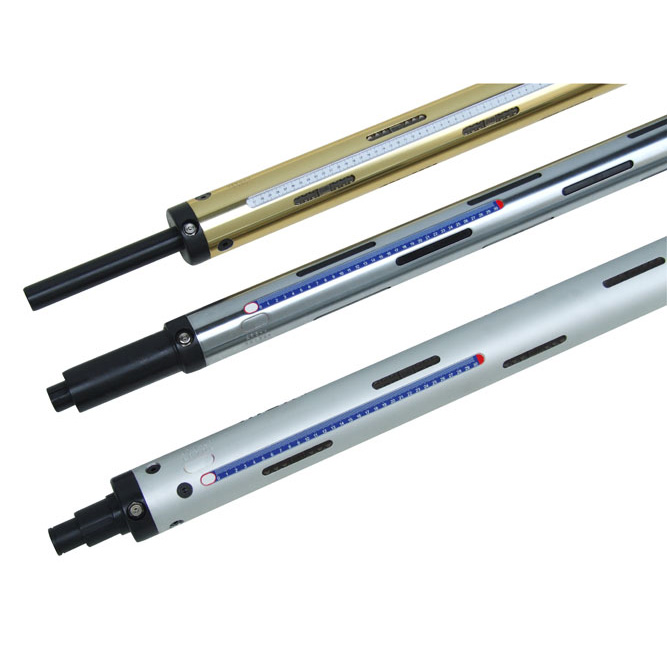

Product Name : Lug Type Air Shaft
SPECIFICATION
  • Can increase the gripping force by elongate the lug element.
  • For full range of core sizes
  • Rubber lug, aluminum lug or steel lug is available for lug element according to the customer’s demand.
  • Budget model. Recommend for the unwind/rewinding not requiring high accuracy
  • Cantilever shaft with flange or journal mounting is available for custom order.
  • Slide-in ball bearing on surface of shaft to assist the changeover of core is available for option.
  • Diameter:  1" ~ 12"(25mm ~ 508 mm)
  • Shaft material: Aluminum alloy or seamless steel tube with hard chrome-plated surface
