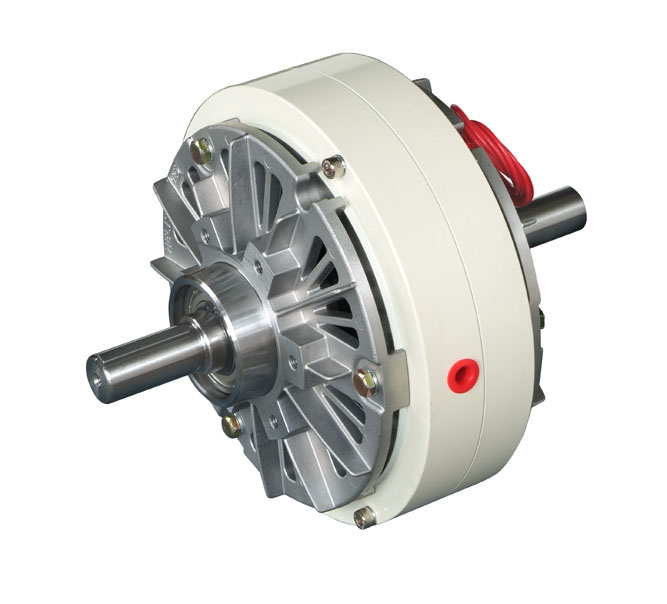

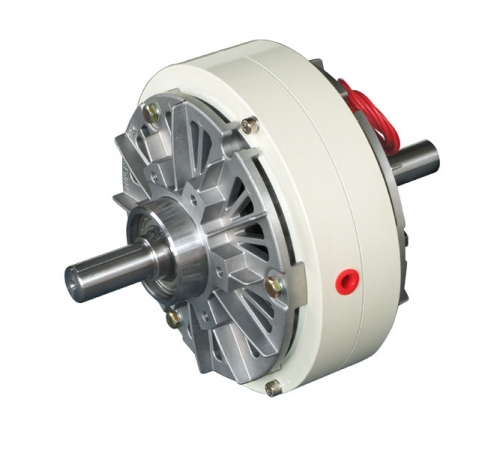

POC-006~050
SPECIFICATION
| Type | Fix torque Nm (kgfcm) | Capability (75°C) | Monent of lnterid (kg-m2) | |||
|---|---|---|---|---|---|---|
| Electric Current (A) | Electric Power (W) | Attracting Time (S) | INPUT | OUTPUT | ||
| POC-006 | 0.6(6) | 0.81 | 19.4 | 0.09 | 6.00 x 10-4 | 1.93 x 10-4 |
| POC-012 | 1.2(12) | 0.94 | 22.5 | 0.10 | 1.34 x 10-3 | 4.90 x 10-4 |
| POC-025 | 2.5(25) | 1.24 | 30 | 0.12 | 3.80 x 10-3 | 1.49 x 10-3 |
| POC-050 | 5(50) | 2.15 | 51.5 | 0.13 | 9.50 x 10-3 | 4.80 x 10-3 |
| Type | Compelling air-cooling concessional slide rate of work | Weight (kg) | Max. speed of Rotation (r/min) | Weight of Magnetic Power(g) | ||
|---|---|---|---|---|---|---|
| Air pressure (pa) | Air volume (m3/min) | Ratio (W) | ||||
| POC-006 | 1.8 x 10-4 | 0.1 | 170 | 5.2 | 1,800 | 10 |
| POC-012 | 3 x 10-4 | 0.2 | 250 | 7 | 1,800 | 20 |
| POC-025 | 5 x 10-4 | 0.4 | 380 | 12 | 1,800 | 33 |
| POC-050 | 1 x 10-5 | 0.6 | 700 | 19.6 | 1,800 | 60 |
Remark :
- Compress air for cooling should be dry and de-oil.
- The idle torque of type should be less than 1% of fixed torque.

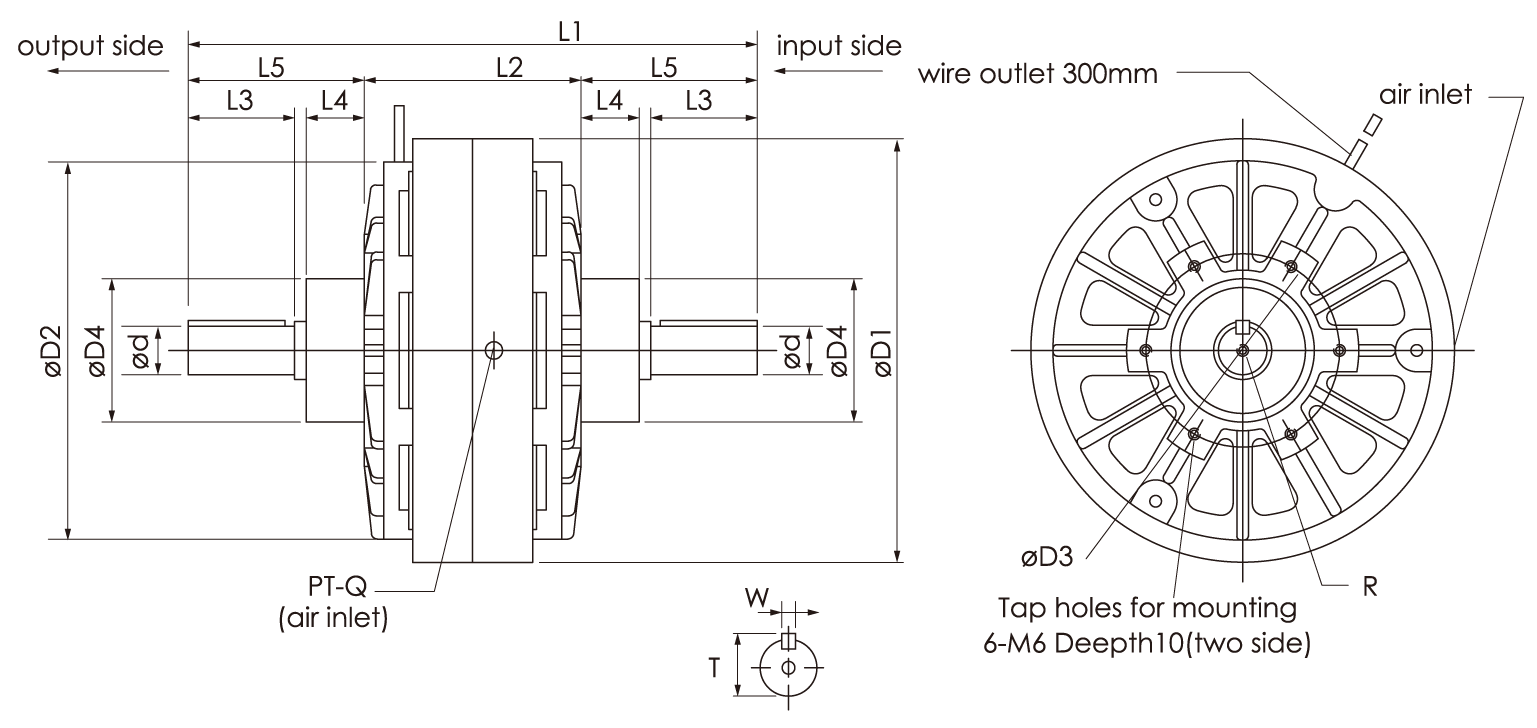

Dimension
| Type | L1 | L2 | L3 | L4 | L5 | D1 | D2 | D3 | D4 (G7) | Q (inch) | R | Axis body | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pathway | Depth | D (h7) | W (p7) | T (0-0.2) | |||||||||||
| POC-006 | 164 | 72 | 26 | 14 | 46 | 134 | --- | 64 | 42 | 1/8 | M4 | 10 | 12 | 4 | 13.5 |
| POC-012 | 192 | 94 | 29 | 15 | 49 | 152 | 126 | 64 | 42 | 1/8 | M4 | 8 | 15 | 5 | 17 |
| POC-025 | 230 | 102 | 43 | 17 | 64 | 184 | 160 | 78 | 55 | 1/8 | M5 | 10 | 20 | 5 | 22 |
| POC-050 | 294 | 112 | 55 | 30 | 91 | 219 | 196 | 100 | 74 | 1/4 | M6 | 12 | 25 | 7 | 28 |
Remark : Dimension in mm.
- Aston Tech Ltd. reserve the right to change materials and specifications without prior notice.
