  • Alignments are controlled within the unit simplifying installation.
  • Sealed cylinder ensures low air consumption.
  • Torques can be varied by regulating the supply pressure.
  • Speed of engagement can be controlled by varying the supply flow rate.
  • Single friction face design virtually eliminates drag torque.
  • Axial thrusts are contained within the unit.
  • Ideal for high cyclic duties, tensioning and torque limiting application.
Construction of NAC
Torque Versus Pressure
Heat Dissipation



Minimum Shaft Length Allowed

SIZEab
NAC 2 5-10 50
NAC 5 6-11 65
NAC 10 7-12 95
NAC 40 0-19 110
NAC 60 0-33 128

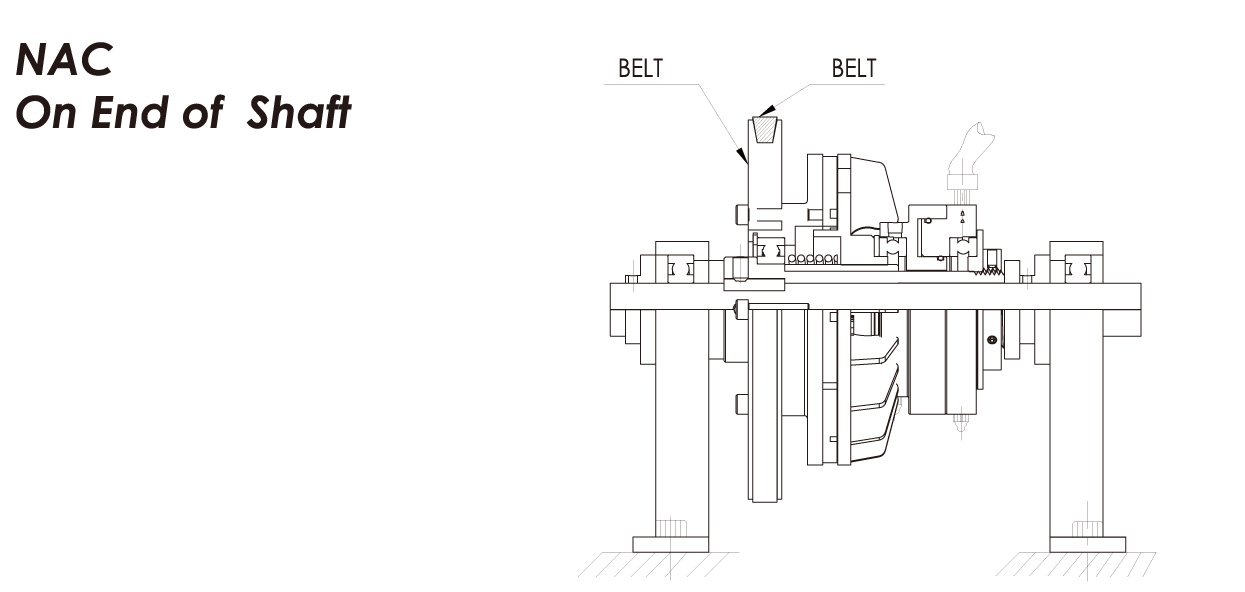

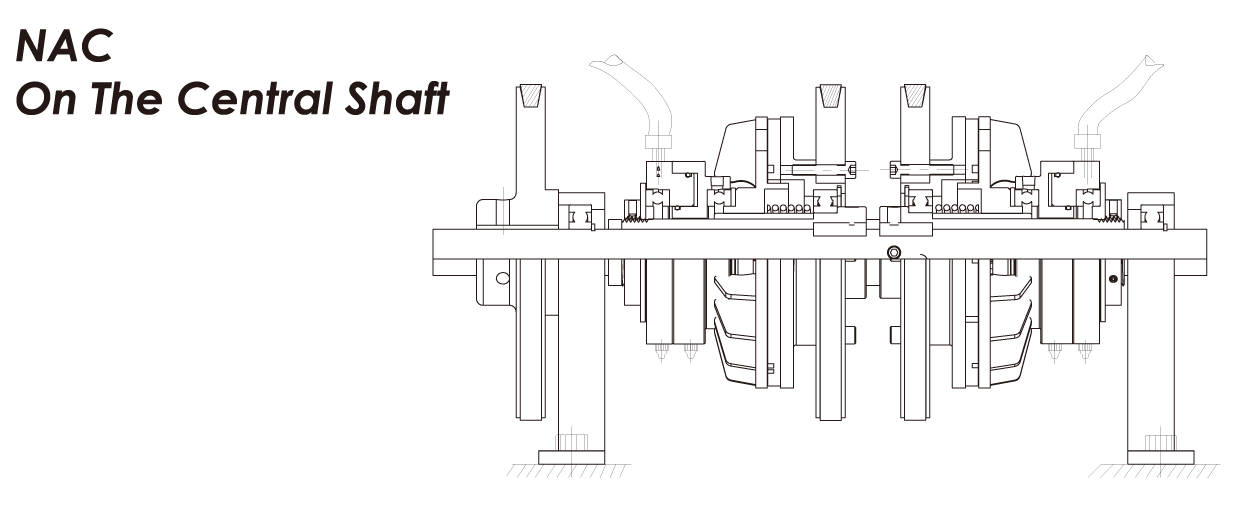

Mounting Example :

Caution :

  1. The gap between disc and friction pad should be between 0.5~ 0.8 mm.
  2. The trust ball bearing should be lubricated periodically. The period is between 1 to 6 month depends on the working condition.
