產品名稱 : HABB

Feature

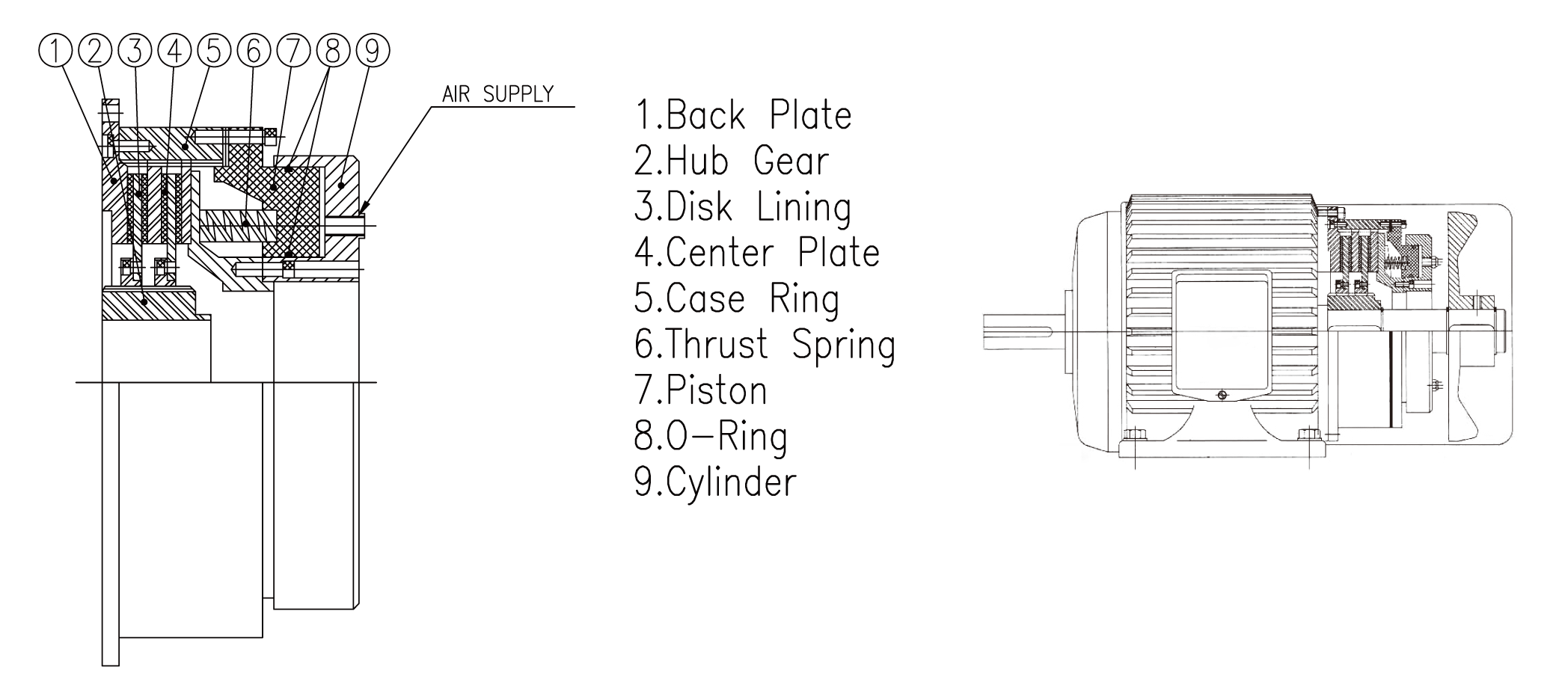

  1. If air supply is hold, the braking spring is activated and stops the operation. If air is supplied, spring is released.
  2. Suitable for the emergent stop and fail-safe control.
  3. Application : elevator, printing press, crusher, diverse dafe machines, food

產品介紹

ModelTorques
(kgf-m)
Air Pressure
4kgf/cm2

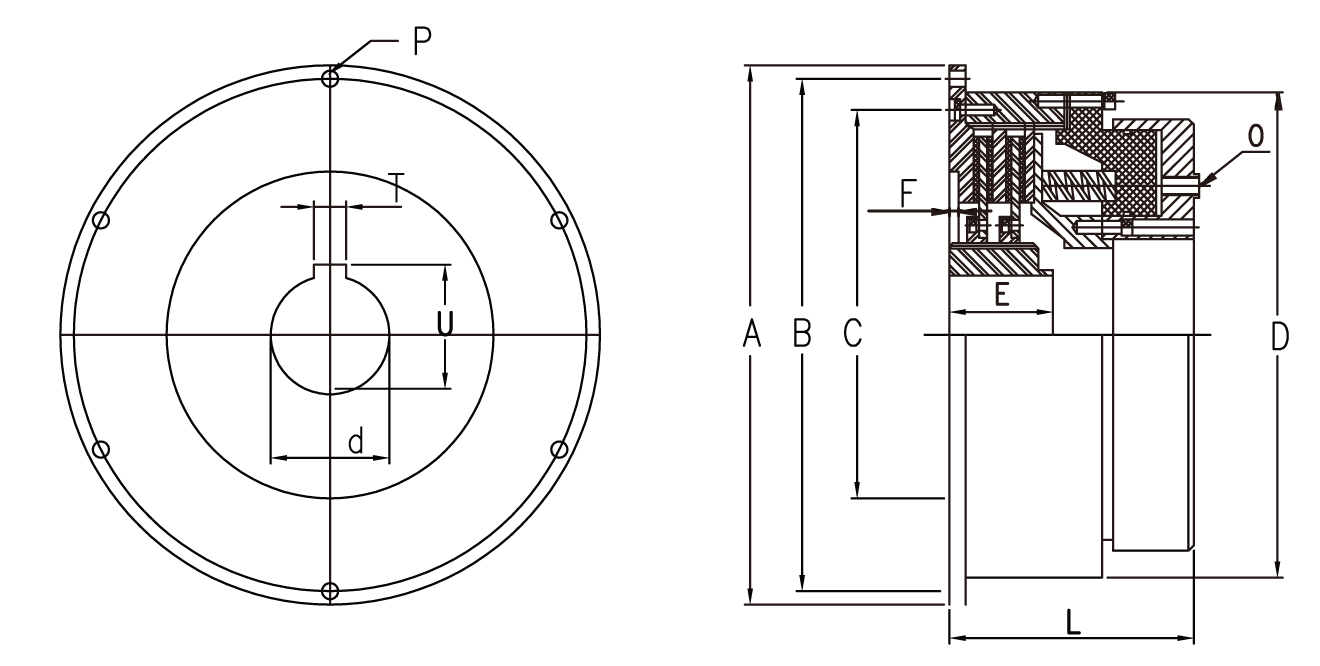

Dimension
ABCDEFLOPTUdH7
(max)
HABB-275-1 25 4 315 295 210 275 55 3 120 PT 1/4 6-ɸ 11 14 53.8 ɸ 50
HABB-275-2 50 4 315 295 210 275 80 3 145 PT 1/4 6-ɸ 11 14 53.8 ɸ 50
HABB-375-1 60 4 420 400 270 375 60 4 145 PT 3/8 12-ɸ 13 22 85.4 ɸ 80
HABB-375-2 120 4 420 400 270 375 90 4 175 PT 3/8 12-ɸ 13 22 85.4 ɸ 80
HABB-475-1 150 4 525 495 380 475 85 4 165 PT 3/8 12-ɸ 15 28 110.4 ɸ 105
HABB-475-2 300 4 525 495 380 475 135 4 215 PT 3/8 12-ɸ 15 28 110.4 ɸ 105
HABB-575-1 350 4.5 635 600 450 575 120 5 185 PT 1/2 12-ɸ 17 35 141.0 ɸ 130
HABB-575-2 700 4.5 635 600 450 575 145 5 225 PT 1/2 12-ɸ 17 35 141.0 ɸ 130
HABB-770-1 800 5 840 800 650 760 170 6 240 PT 1/2 14-ɸ 22 45 170.4 ɸ 160
HABB-770-2 1,600 5 840 800 650 760 240 6 305 PT 1/2 14-ɸ 22 45 170.4 ɸ 160
